Imagine a component that configures and prepares an external API to be used in another component, but is not tightly coupled with any specific template. Such a component could then be reused in multiple places rendering different templates but using the same base object with specific API.
For the purpose of this blog post, I’ve created a component (GoogleMapLoader.vue) that initialises Google Maps API, creates a google and map objects and exposes those objects to the parent component in which the GoogleMapLoader is used.

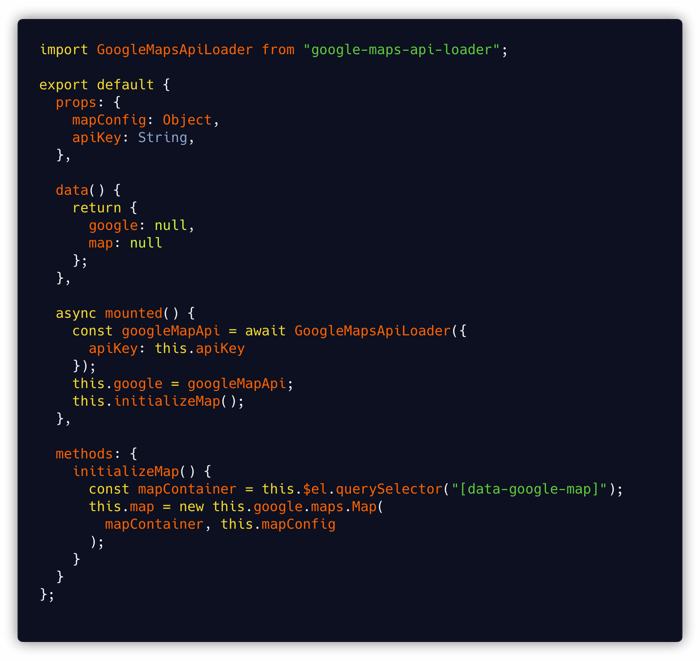

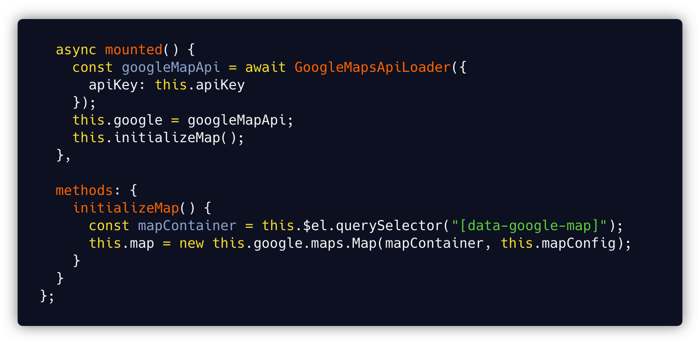

See below a basic example of how this can be achieved. We will analyse the code piece by piece and see what is actually happening in the next section.
The template part will look as below
This is just part of a working example, you can find the whole example in this Codesandbox example. We will analyse the code piece by piece and see what is actually happening in the next section.
Real-World Example: Creating a Google Map Loader component
1. Create a component that initialises our map

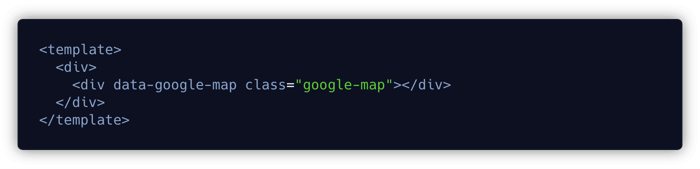

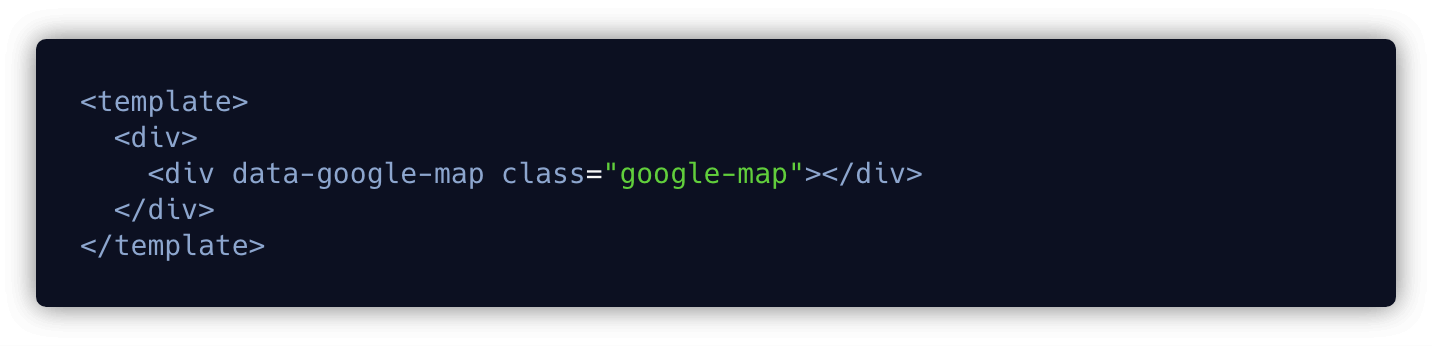

In the template we create a container for the map which will be used to mount the Map object extracted from the Google Maps API.
Inside the script part:

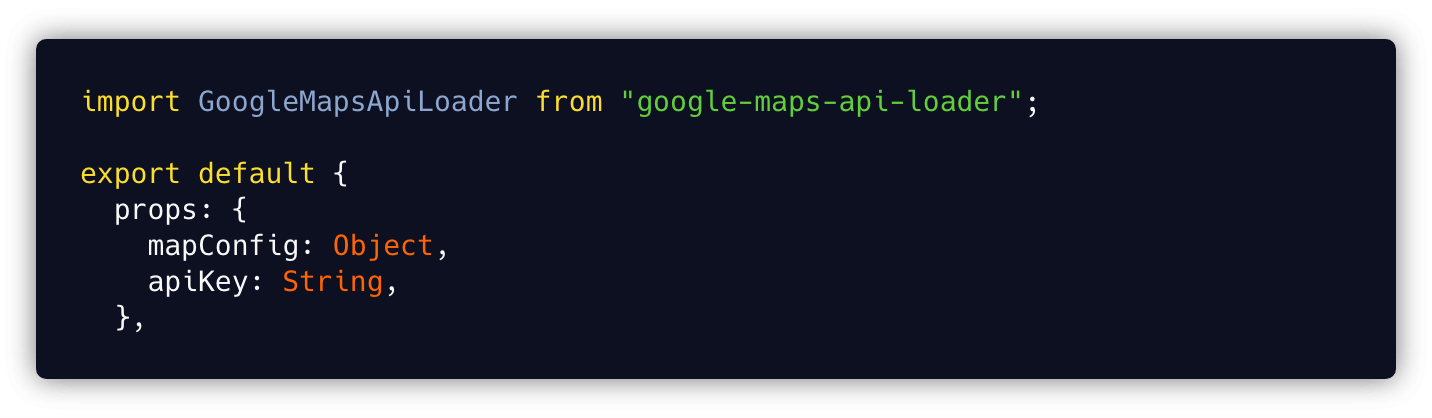

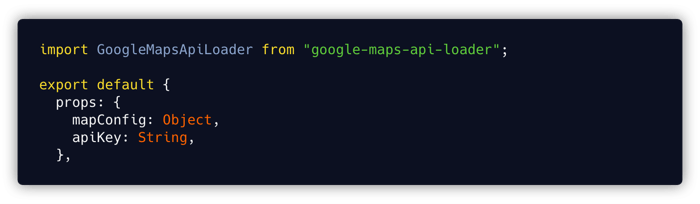

- we receive props from the parent component which will allow us to set the Google Map:

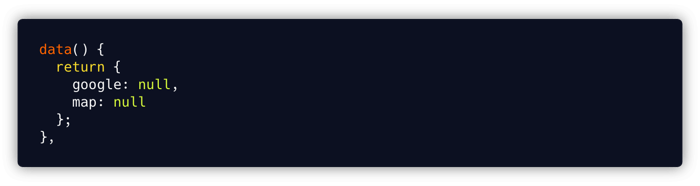

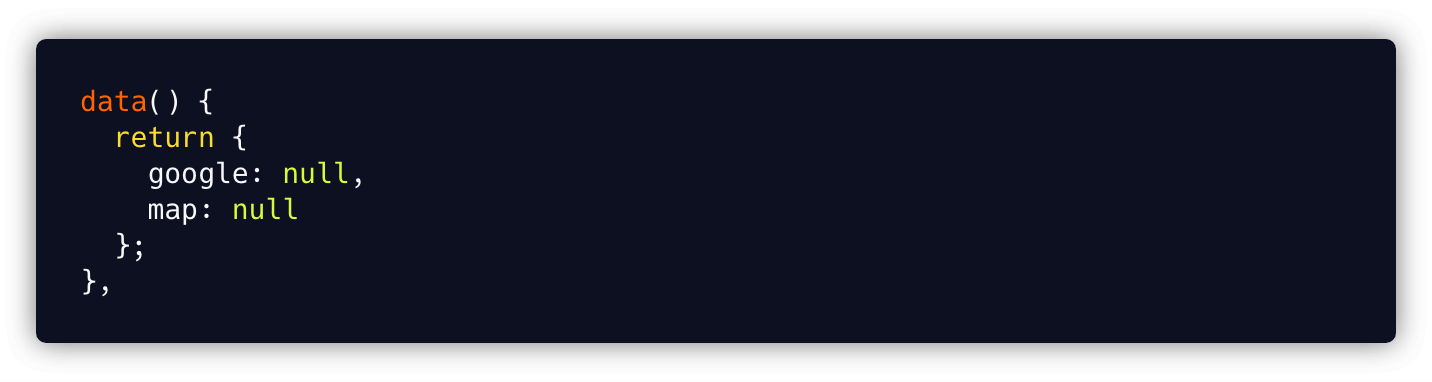

- we set the initial values of google and map to null

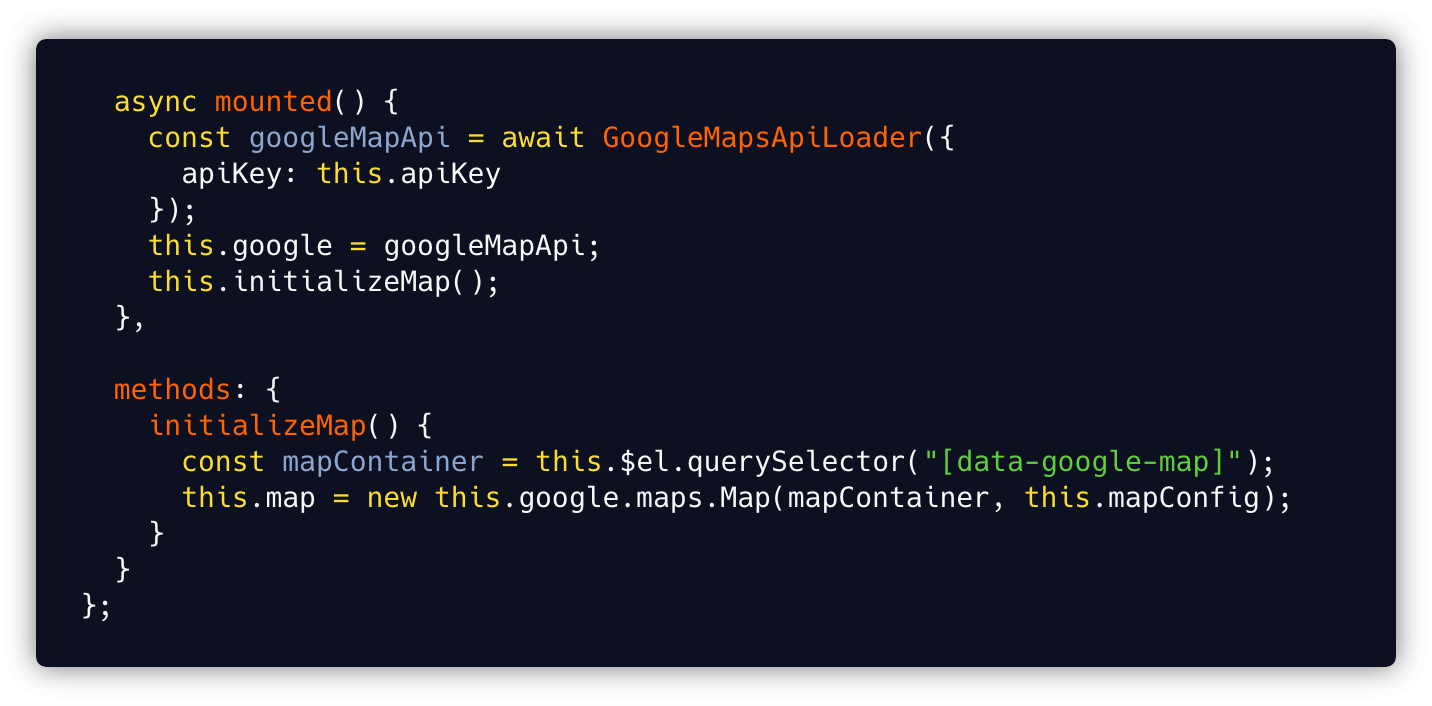

- on mounted hook we create an instance of GoogleMapsApi and Map object from the GoogleMapApi and we set the values of google and map to the created instances
So far so good, with that done we could continue adding the other objects to the map (Markers, Polylines, etc.) and using it as a ordinary map component. But we want to use our GoogleMapLoader component only as a loader that prepares the map, not renders anything on it.
To achieve that we need to allow parent component that will use our GoogleMapLoader to access this.google and this.map that are set inside the GoogleMapLoader component. That's where scoped slots really shine. Scoped slots allow us to expose the properties set in a child component to the parent component. It may sound like an inception, but bear with me one more minute.
2. Create component that uses our initialiser component

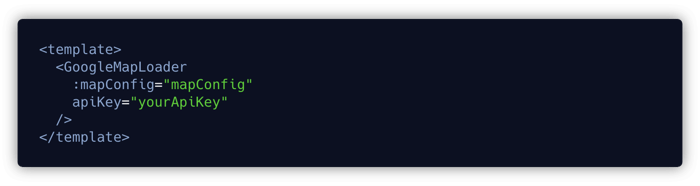

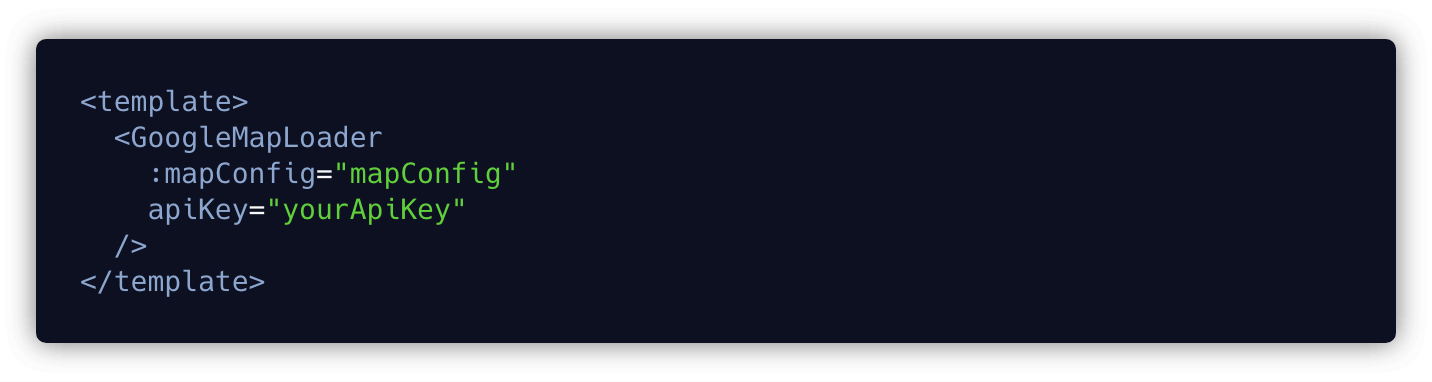

In the template, we render the GoogleMapLoader component and pass props that are required to initialise the map.

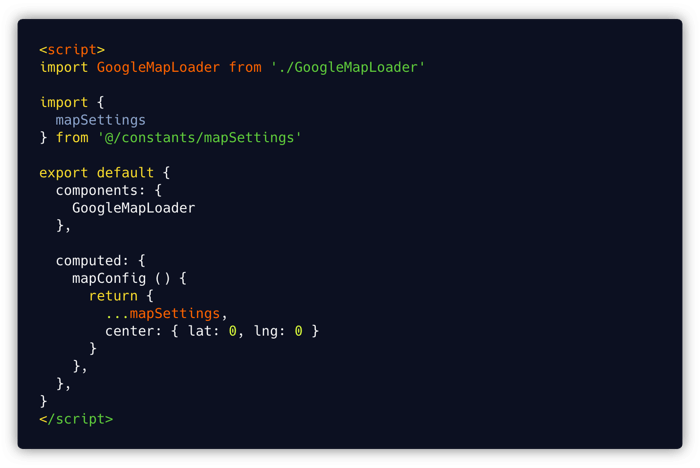

Our script tag will look like below at this stage.
Still no scoped slots, let's add one.

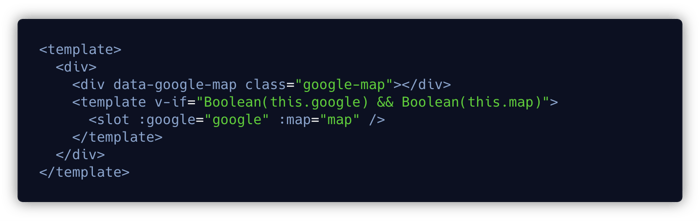

3. Expose google and map properties to the parent component by adding a scoped slot
So finally we can add a scoped slot that will do the job and allow us to access the child component props in the parent component. We do that by adding the <slot> tag in the child component and passing the props that we want to expose (using v-bind directive or :propName shorthand). It does not differ from passing the props down to the child component, but doing it in the <slot> tag reverse the direction of data flow.
Now when we have the slot in the child component we need to receive and consume the exposed props in the parent component.
4. Receive exposed props in the parent component using slot-scope attribute

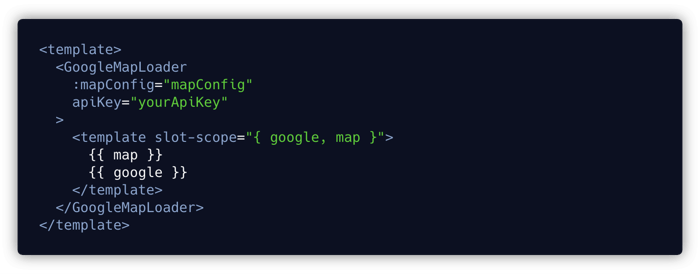

To receive the props in the parent component we declare a template element and use slot-scope attribute. The attribute has access to the object carrying all props exposed from the child component. We can grab the whole object or we can destructure that object and get the required props. Let's proceed with the second option.
After doing that even though the google and map props does not exist in the TravelMap scope, the component has access to them and we can use them in the template.
Yeah, ok, but why would I do things like that, what is the use of all that?
Scoped slots allow us to pass a template to the slot instead of passing a rendered element. It’s called a “scoped” slot because although the template is rendered in the parent component scope, it will have access to certain child component data. That gives us a freedom to fill the template with custom content from the parent component.

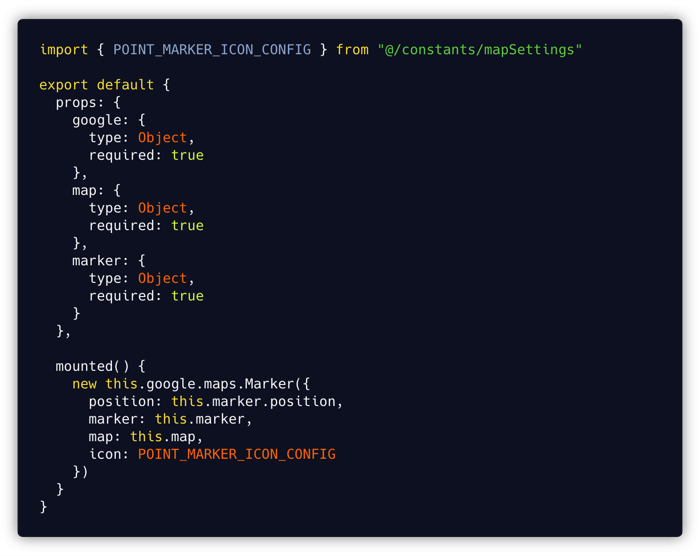

5. Create factory components for Markers and Polylines
Now when we have our map ready we will create two factory components that will be used to add elements to the TravelMap.

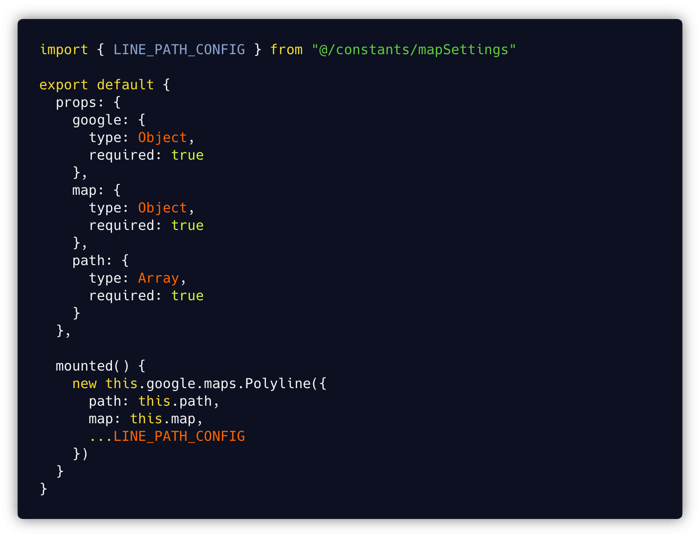

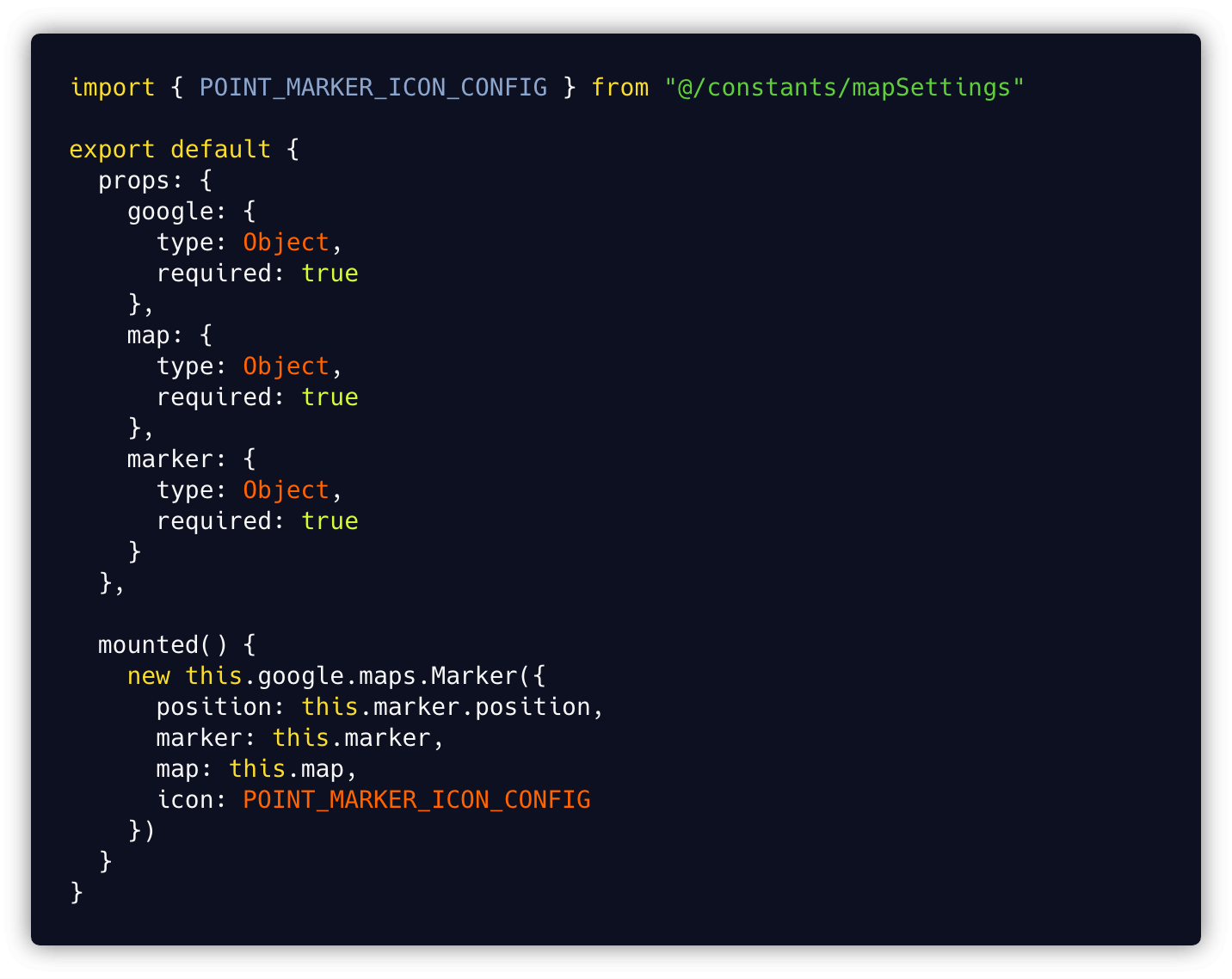

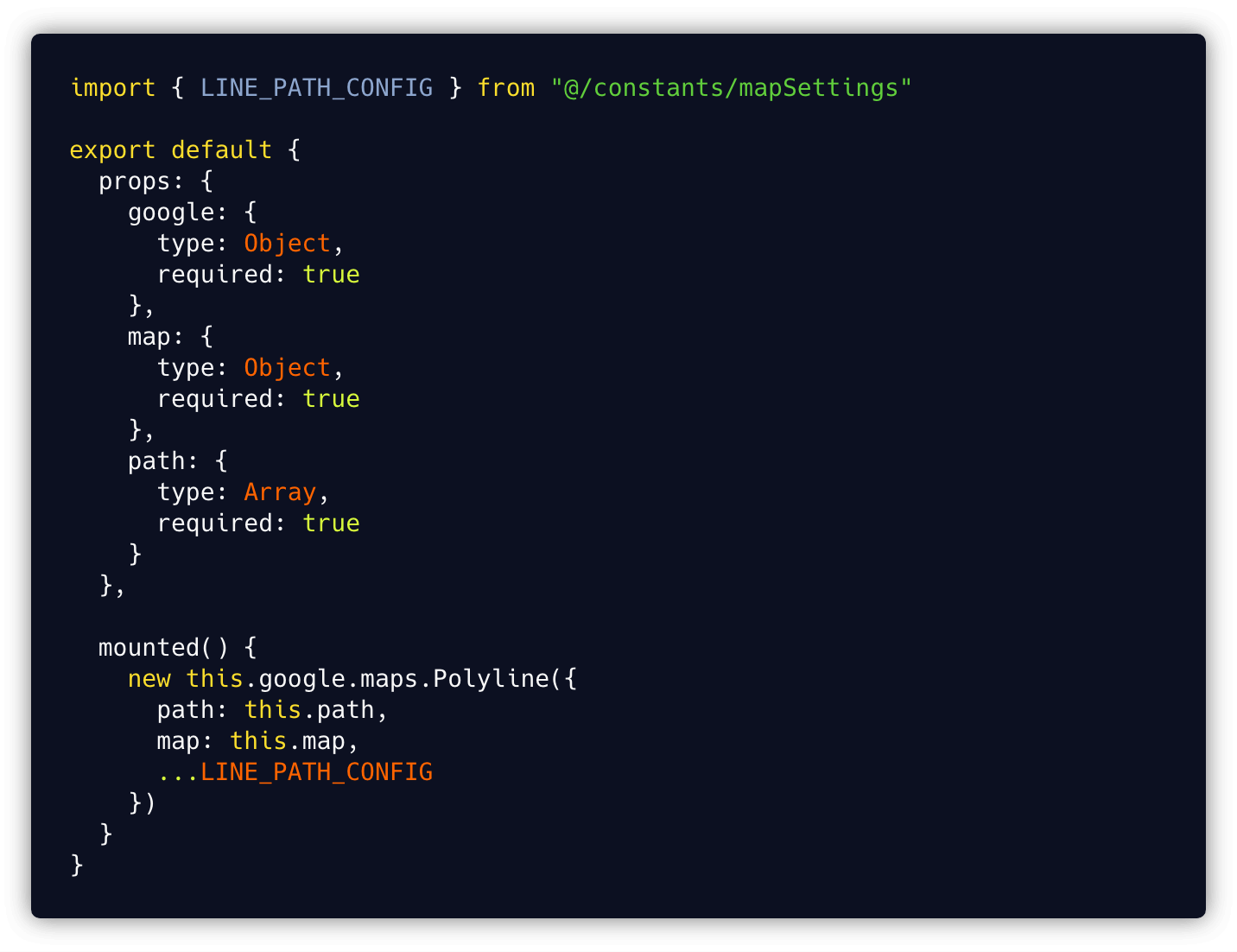

- both of them receive google from which we extract required object (Marker or Polyline) and map which gives as a reference to the map on which we want to place our element
- each component expects also an extra prop to create a corresponding element
- on mounted hook we create an element (Marker / Polyline) and attach it to our map by passing the map property to the object constructor
6. Add elements to map
Now let's use our factory components to add elements to our map.

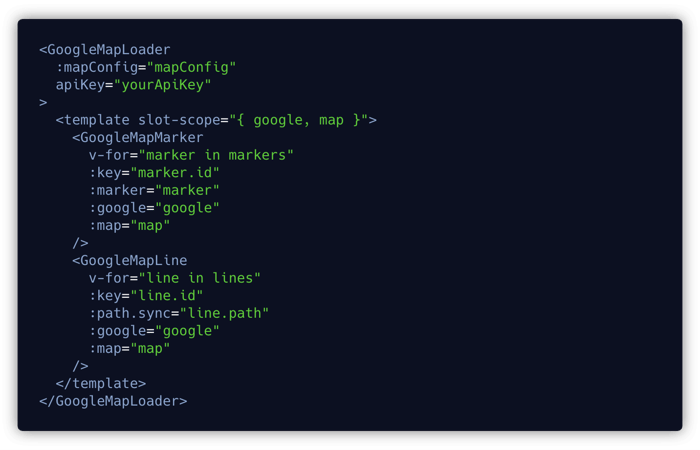

To add elements to our map we render the factory component and pass the google and map objects.
We also need to provide data required by the element itself (in our case marker object with position of the marker and path object with polyline coordinates).

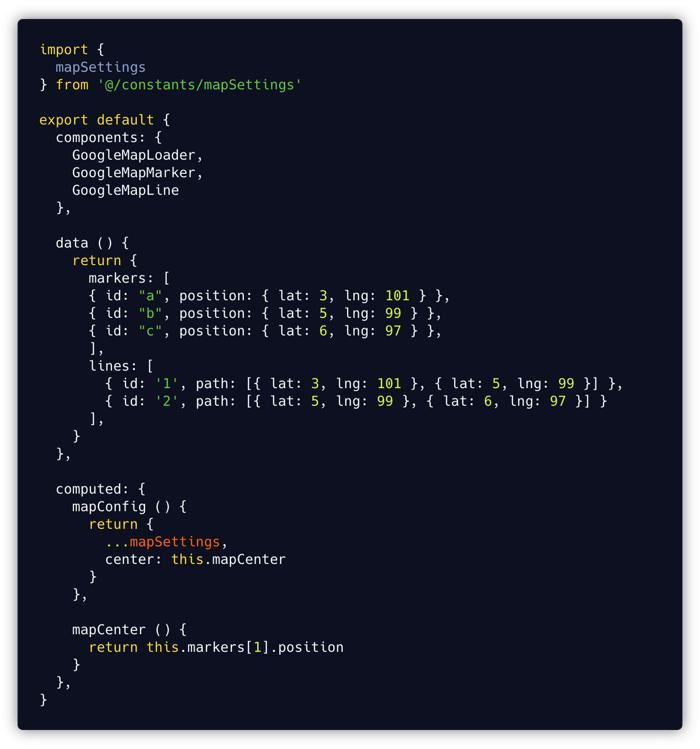

In our script we need to import the required factory components and set data that will be passed to the markers and lines.
That's it. With all those bits and pieces created we can now re-use the GoogleMapLoader component as a base for all our maps by passing different templates to each one of them. Imagine that you need to create another map with different Markers or just Markers without Polylines. By using the above pattern it becomes very easy as we just need to pass different content to the GoogleMapLoader component.
This pattern is not strictly connected to Google Maps, it can be used with any library to set the base component and expose the library's API that might then be used in the component that summoned the base component.
It might be tempting to create a very complex solutions based on the example, but at some point we can get to the situation where this abstraction becomes an independent part of the code living in our codebase. If we get to that point it might be worth considering extraction to an add-on.
